Gearbox complete Top Racing AM6
Gearbox complete Top Racing AM6
Gearbox complete Top Racing AM6
Gearbox complete Top Racing AM6Gearbox complete Top Racing AM6Gearbox complete Top Racing AM6
Jasil
Article no.: JA6250004

Gearbox complete Top Racing AM6

419,00 €

incl. tax, plus shipping

Availability:
In stock
Dispatch:
Immediate
Attention!

You did not select a vehicle.
You still want to buy this item?

Attention!

Note: The product does not match the selected vehicle model. Continue anyway?

You'll get 419 reward points
Share product

Description

Top Racing complete gearbox am6

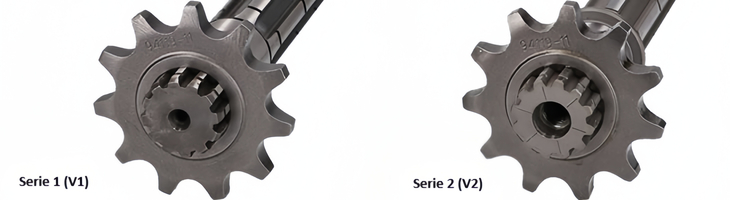

Complete and reinforced racing gearbox from Top Racing for Minarelli AM6 engines. Compatible with both Series 1 and Series 2.

Racing gearboxes have shortened gear steps to reduce the drop in RPM to the next gear. This is crucial to ensure that heavily tuned engines with a narrow power band do not drop below the optimal power range after shifting. To achieve this, the first two gears are extended and the final three gears are shortened. The shorter final gears are compensated for by the higher RPMs of a tuned engine. The top speed can also be adjusted via the final gear ratio of the sprockets.

Attention: For the reasons mentioned above, the gearbox should not be used for original / standard setups.

Technical features AM6 racing gearbox

  • 1. Gear: 14/36 (original 36/12) +14.3%
  • 2. Gear: 16/30 (original 33/16) +9.1%
  • 3. Gear: 19/29 (original 29/19) +0.0%
  • 4. Gear: 20/27 (original 27/22) -10.0%
  • 5. Gear: 21/26 (original 25/24) -18.9%
  • 6. Gear: 22/25 (original 24/25) -18.4%
Questions about the product


Downloads and Media
Manufacturer's Details
Jasil
Parque Industrial de Adaúfe Lt.i6R.Dr. Constantino Fernendes Velho Sepulveda
4710 - 571 Braga
Portugal
Notes and Safety

Gearbox

A properly geared transmission is a crucial factor in the performance of a motorcycle. You can have the most powerful cylinder, the best exhaust and the greatest tuning parts on the market - if the transmission is not properly geared, too short or too long, you will never get the best performance out of it.

Gearbox Repairs

If you have the necessary know-how you can replace single gearbox parts or the complete gearbox, there is a huge range of options for 50cc motorbikes.

Always remember to maintain the gearbox by changing the oil regularly. You can use gear oil or 4-stroke engine oil (depending on the manufacturer's recommendation).

gearbox Tuning

For 50cc motorcycles, there are complete racing gearboxes whose ratios are designed for tuned setups and where some relevant components are reinforced.

Note: If you can't or don't want to replace the original gearbox with a racing gearbox, you can also change the final ratio by using a different sized front sprocket and rear sprocket.

Technical details
Gearbox complete Top Racing AM6
Article no.JA6250004
Weight0,30 kg
BrandJasil
Product typeGearbox
AssemblyPre-pressed
