Description
Italkit W-Force reed valve for KTM SX 65
The Italkit W-Force reed valve plus intake manifold optimizes the performance of 65cc or 50cc KTM moto bikes. Italkit's W-shaped 'Doble Prisma' system significantly optimizes the reed area and airflow.
Italkit W-Force Doble Prisma

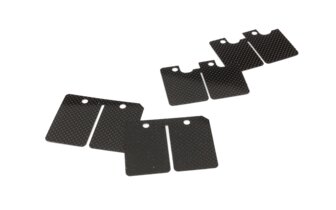

The Doble Prisma reed valve is supplied with an intake manifold for 28 / 30 mm carburetors , ideal for tuned engines. The reed valve is supplied with an aluminum stuffer. The optimized tract improves the intake flow considerably. The 0.28 mm thick carbon plates are designed to provide excellent performance at high rpm without compromising low rpm response. The double-V system with 4 petals (2 inner and 2 outer) ensures more direct intake and less vibration.
Compatibility
- KTM SX 65 (1998-2008)
- KTM SX 50 (2006-2008)
- KTM SX 50 Adventure Senior (2002-2008)
- KTM SX 50 Adventure Mini (2002-2008)
Reed valves for scooter, motorcycle and moped
The reed valve is an integral part of the intake system. It usually sits under the intake manifold.
How does a reed valve work?
The reed valve is usually V-shaped and is equpped with two blades. When the reed valve is opened, mixture will flow; when the reed valve is closed, the flow is significantly reduced. The flow is controlled by the opening of the carburetor slide, which controls the amount of mixture and affects RPM.
What kind of reed valve?
The type and shape of the reed valve can affect engine performance. Common types include the V-Force reed valve in a W-shape with 4 reed petals, and oversize versions with more volume than the original reed valves.
Adjusting the reed valve
You can improve engine output by using petals in different thicknesses, or by using a stuffer or a reed valve spacer. You can influence the mixture flow, which can affect the overall performance of the engine.
Note: When installing also change the intake gasket!
